The
cost effective solution for closed mould process
-
It
is used as core material and infusion medium
-
It
is a pressure stable polyester non-woven and compatible with all regular
types of resins, including Unsaturated Polyester Resin, Vinyl ester,
Phenolic and Epoxy
-
It
is suitable for closed mould processes, including Infusion, RTM Light, RTM
Heavy
APPLICATIONS
-
Marine:
hulls, decks and structures of boats and yachts
-
Transportation:
parts and panels of cars, trailers, trucks and RV¡¯s
-
Mass
transit: interior and exterior of trains, light rail and buses
-
Leisure:
kayaks, surfboards, pools and tubs, Swimming Pool and bathroom
-
Industrial:
Furniture, cladding panels, fans, containers and tanks
-
Wind
energy: nacelle covers and spinners
ADVANTAGES
-
The
product has a diversion groove as a diversion medium;
-
No
need to use additional diversion materials
-
Better
compressive performance
-
As
a choice for low-cost core materials
-
Reduce
product weight
-
Increase
product rigidity
-
Can
make the appearance of the product more beautiful
-
Excellent
conformal performance
-
Excellent
impact resistance
-
The
thickness of the product can be controlled as needed
-
Max

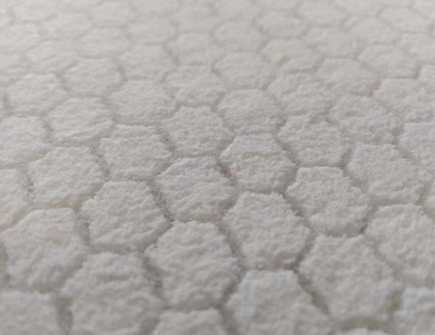

thickness 10mm, hexagonal core with non-absorbing resin, low compression
rate (10%@-0.8bar)
-
Flow
channel 0.5mm, between adjacent hexagons to accelerate resin flow
Properties
BASIC PROPERTIES
|
|
GKC1.5
|
GKC2
|
GKC3
|
GKC4
|
GKC5
|
GKC6
|
|
Thickness (mm)
|
1.5
|
2.0
|
3.0
|
4.0
|
5.0
|
6.0
|
|
Thickness loss at 0.8bar (%)
|
<8
|
<8
|
<8
|
<8
|
<8
|
<8
|
|
Roll length (m)
|
80
|
80
|
50
|
40
|
30
|
25
|
|
Roll width (m)
|
1.28
|
1.28
|
1.28
|
1.28
|
1.28
|
1.28
|
|
Max processing temperature (¡ãC)
|
175
|
175
|
175
|
175
|
175
|
175
|
|
Dry weight (g/m²)
|
125
|
140
|
180
|
250
|
330
|
350
|
|
Resin uptake (kg/m²/mm)
|
0.4-0.5
|
0.4-0.5
|
0.4-0.5
|
0.4-0.5
|
0.4-0.5
|
0.4-0.5
|
|
Density impregnated (kg/m³)
|
500-600
|
500-600
|
500-600
|
500-600
|
500-600
|
500-600
|
|
